Dressed in steel

armouring projects, tools, techniques and reviews

Chainmaille collar Standard

This collar will be made from riveted aluminium chainmaille in a 4in1 weave. I found this maille with 9mm inner diameter at “get dressed for battle” and loved it because of its dull dark grey color.

This collar is meant to be worn under a torso armour so it goes down to about the mid of the shoulder.

Unfortunately the I have done the most part of the weaving on business trips in hotel rooms…..so I lack of proper pictures of this process.

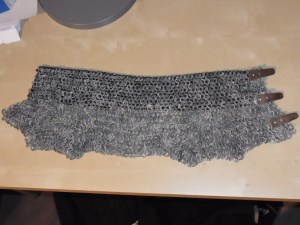

Standard Front

Standard in frontview

I´ve made the lining from 4 layers of linen. Each one layer for in./outside and two layers as a padding.

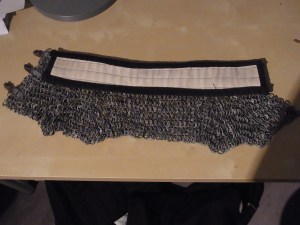

Standard innen

insideview of the collar

The lining was sewn directly to the maille

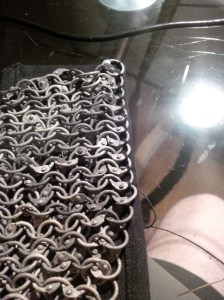

Kette genäht

sewn on chainmaille

The collar will be closed at the neck with three brass hooks. They are riveted to an overlapping part of the chainmaille collar.

I have made this hooks from 1,5mm thick sheet brass. First I cut out 3 stripes and glued them together. Then I was able to file the package in form and all three pieces will have the same contour. To break the bond again I heated the package till the glue had burned entirely.

I filled in some decorative lines with a square keyfile. Then I chemically blackend the peaces and polished them up again with 240 grid sandpaper.

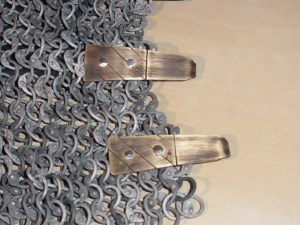

Verschluss Haken

Collar hooks

Detail Haken

Detail of the hook

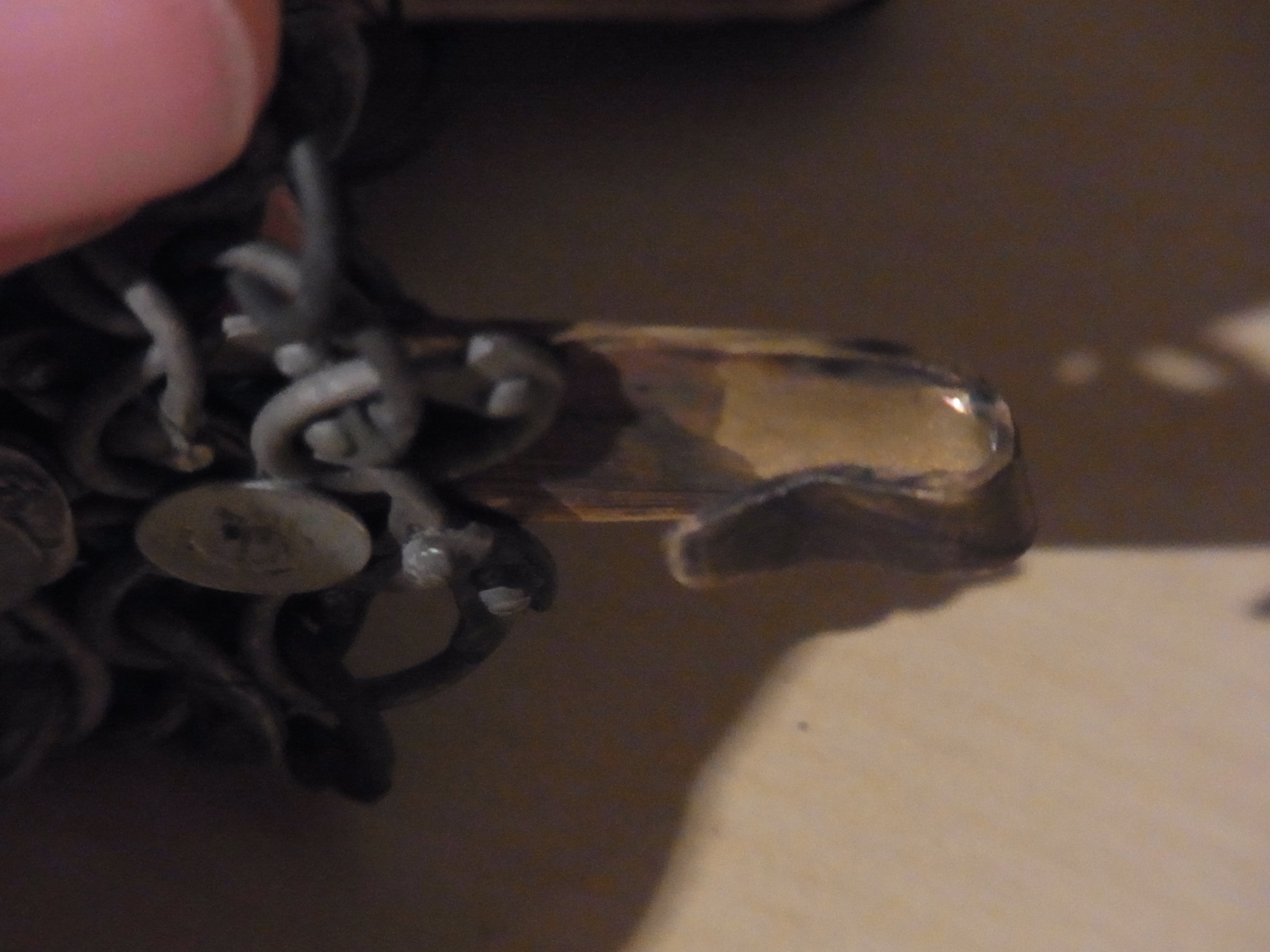

As rivets I used nails with a wide head and riveted the hooks directly to the chainmaille.

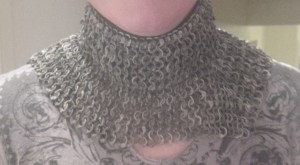

Kettenstandard vorne

Standard collar from the front

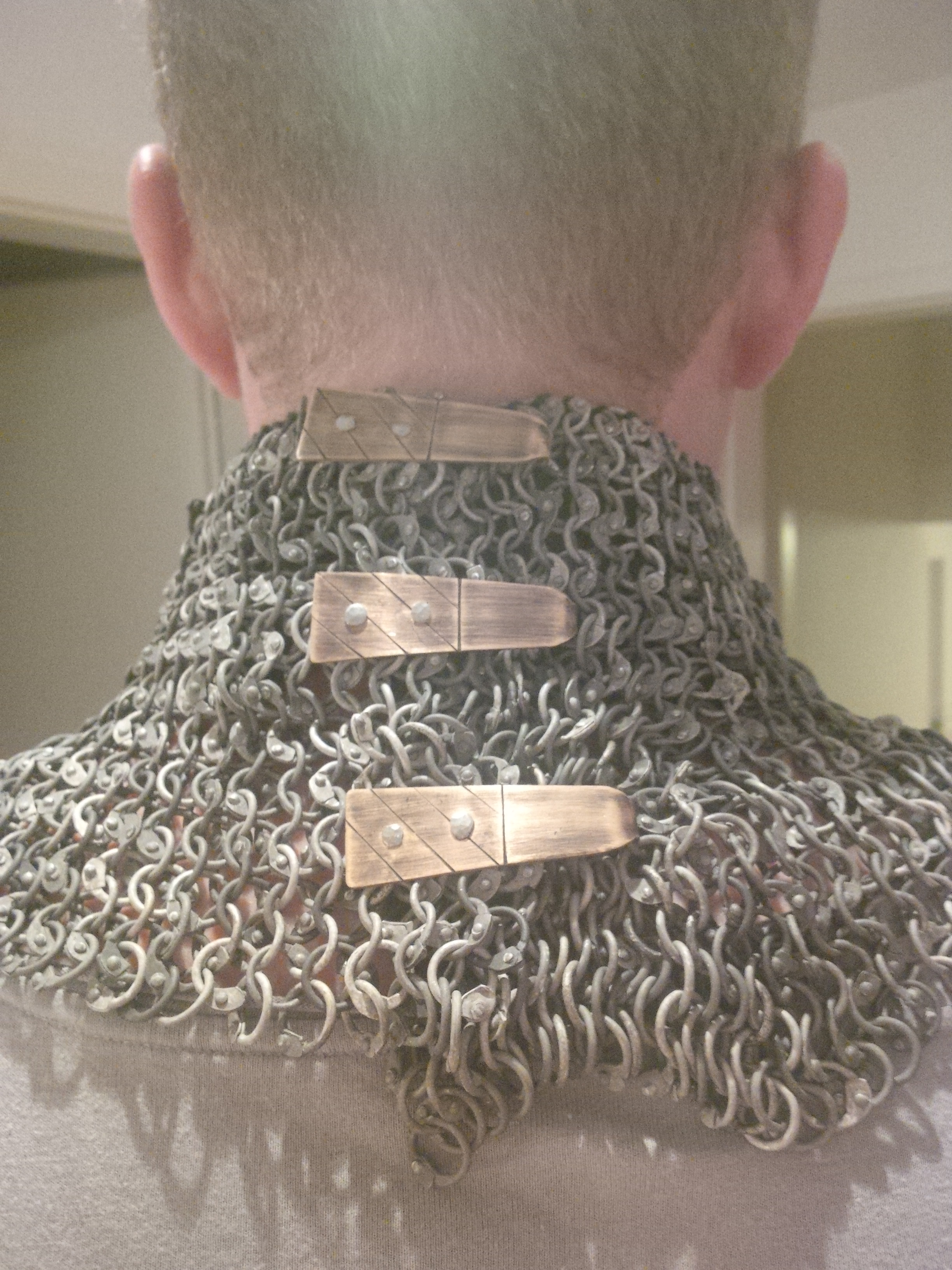

Kettenstandard hinten

View on the hooks
